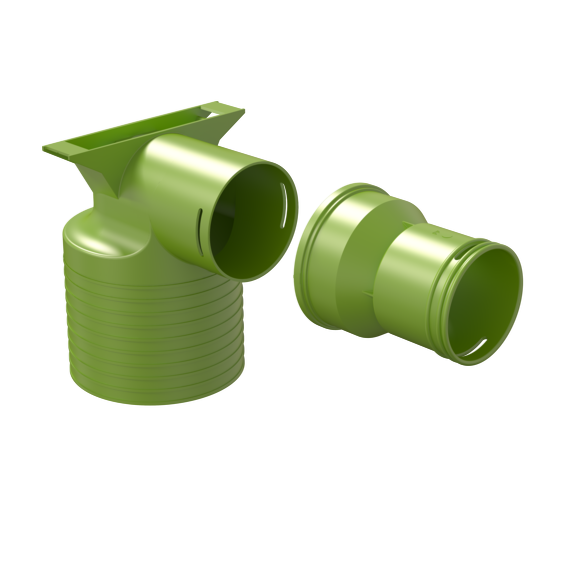

Air Excellent 1x AE23C Valve Adaptor 125mm 90°

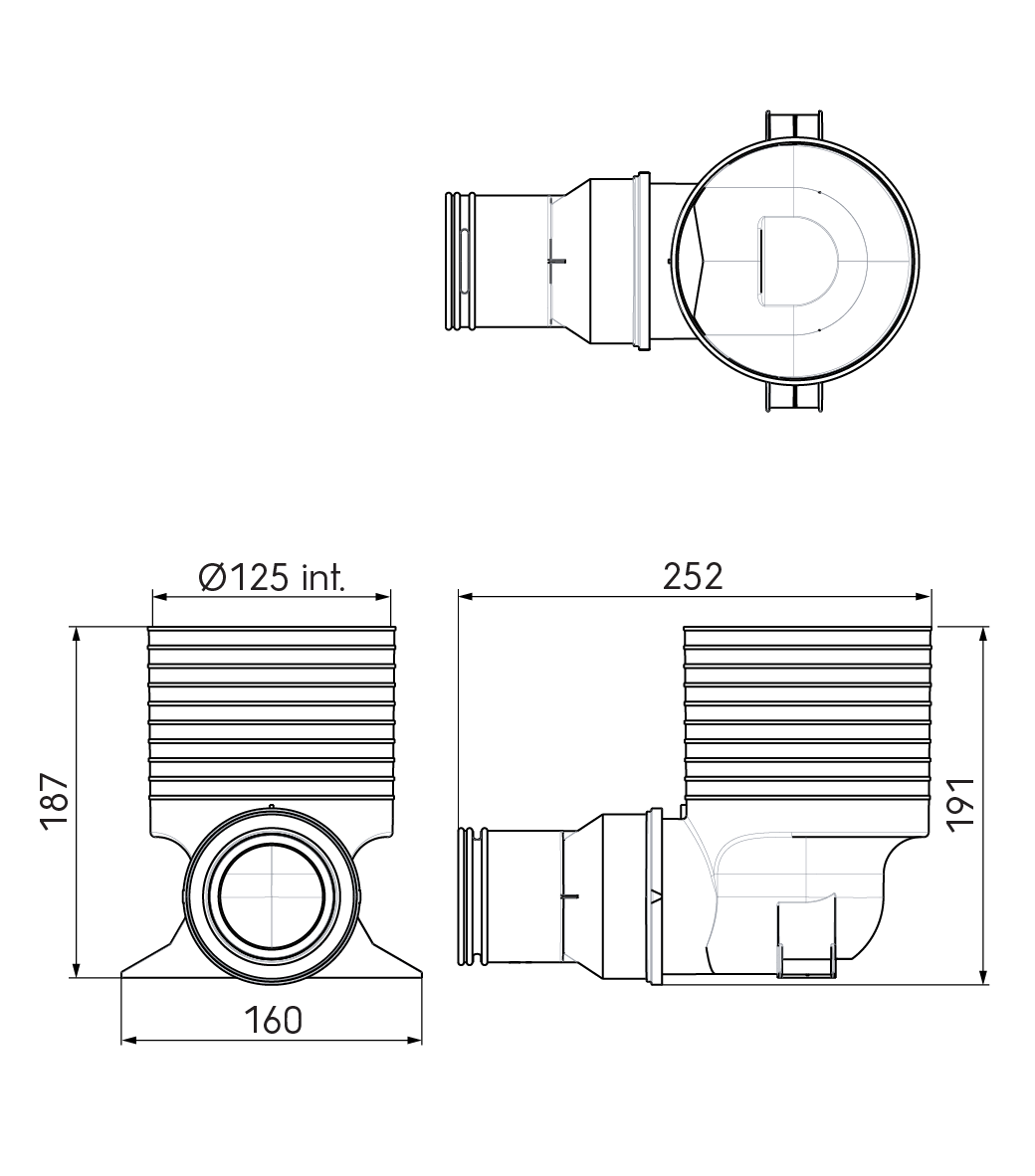

Dimensional drawing – 1x AE23C Valve Adaptor 125mm 90°

Air Excellent 1x AE23C Valve Adaptor 125mm 90°

Article number: 188184

Air Excellent 1x AE23C Valve Adaptor 125mm 90°
Dimensional drawing – 1x AE23C Valve Adaptor 125mm 90°
Air Excellent 1x AE23C Valve Adaptor 125mm 90°
Dimensional drawing – 1x AE23C Valve Adaptor 125mm 90°

An AE23C duct accessory. Use an AE23C seal ring and an AE23C click ring to connect the AE23C duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Detailed information

This item can be used to terminate a duct run inside a habitable or wet room. A valve must be inserted into it.

Specifications

General

Product Name
Air Excellent 1x AE23C Valve Adaptor 125mm 90°
GTIN
8713645240145
Trade name
Air Excellent
Type
Adaptors
Accessories in package
Cover caps

Technical

Colour
Green
Shape
Circular
Antimicrobial
Material
PP
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
252 mm
Height
191 mm
Width
160 mm

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade width
160 mm
Number per packaging
1
Packaging / Trade length
190 mm
Packaging / Trade height
220 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Certificate

Certificate - TÜV SÜD Air Excellent

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent 1x AE23C Valve Adaptor 125mm 90°

Brochure/folder

Brochure - Air Excellent
