AE34c-FlexPipe-Untreated
Dimensional drawing – AE34C Semi-Rigid Duct

Air Excellent AE34C Semi-Rigid Duct 50m

Article number: 188378

AE34c-FlexPipe-Untreated
Dimensional drawing – AE34C Semi-Rigid Duct
AE34c-FlexPipe-Untreated
Dimensional drawing – AE34C Semi-Rigid Duct

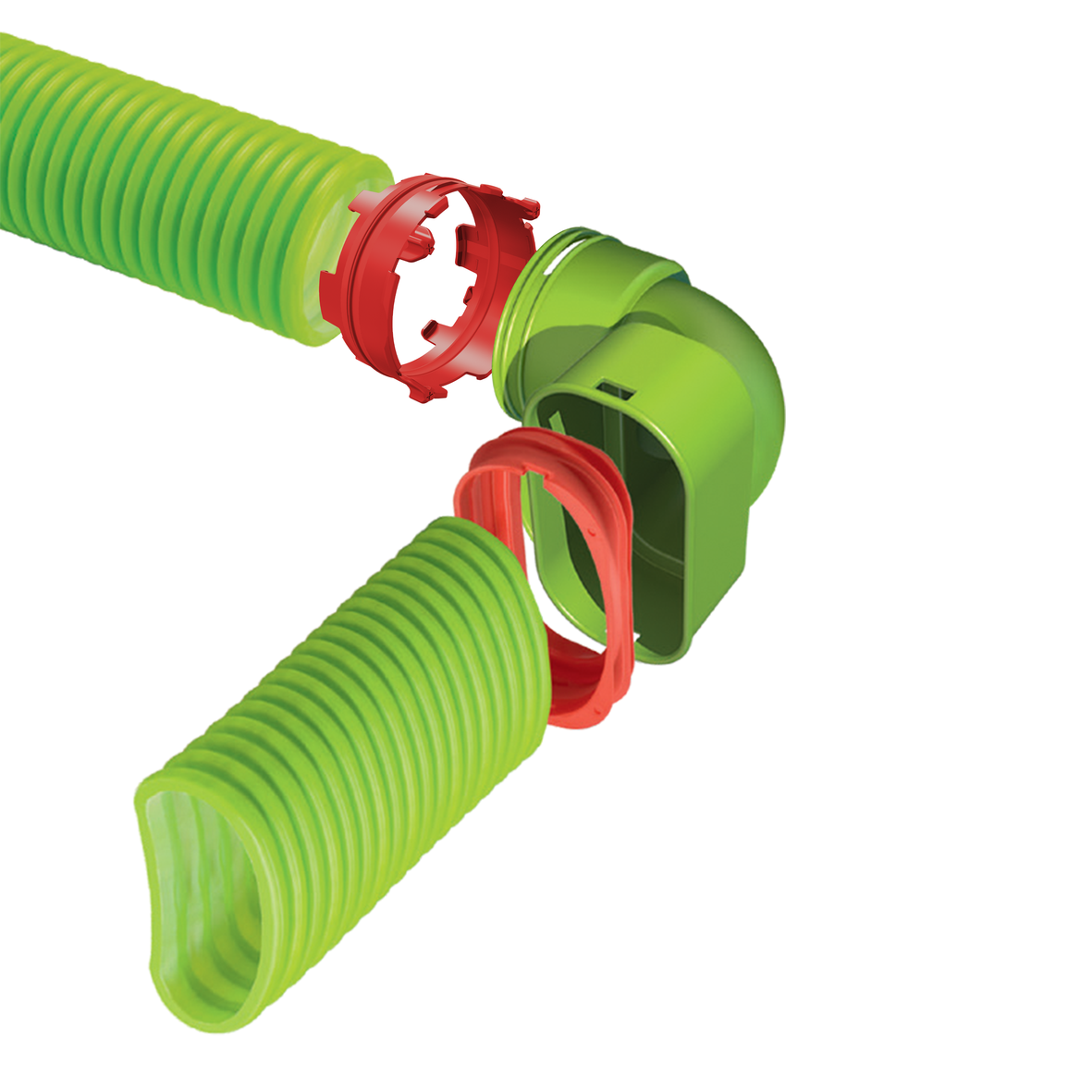

An Air Excellent semi-rigid plastic duct DN75/63mm without any additives.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Detailed information

This semi-rigid/bendable plastic duct is made of virgin PE to ensure its quality and durability and has a high-density outer layer with a ring stiffness of 7.85 kN/m2 in accordance with ISO 9969 and a smooth inner surface. It is easy to cut with a knife.

Specifications

General

Product Name
Air Excellent AE34C Semi-Rigid Duct 50m
GTIN
4049193055721
Type
Ductwork
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Material
PE
Anti static
Airflow direction
Supply / extract
Colour
Green
Shape
Circular
Antimicrobial

Dimensions

Length gross
50 m / 50000 mm
Height
76 mm
Width
76 mm
Net weight
17 kg

Logistical

Intrastat
39173200
Base unit packaging
Unpacked
Number per packaging
1
Gross weight
17 kg

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
Installation temperature (max.)
50 °C
Installation temperature (min.)
0 °C

Downloads

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent AE34C Semi-Rigid Duct 50m

Brochure/folder

Brochure - Air Excellent
