Air Excellent inline adaptor DN160 DB206
Dimensional drawing – Side connection DN160 Dbox

Air Excellent DB206 horizontal adaptor 160

Article number: 188977

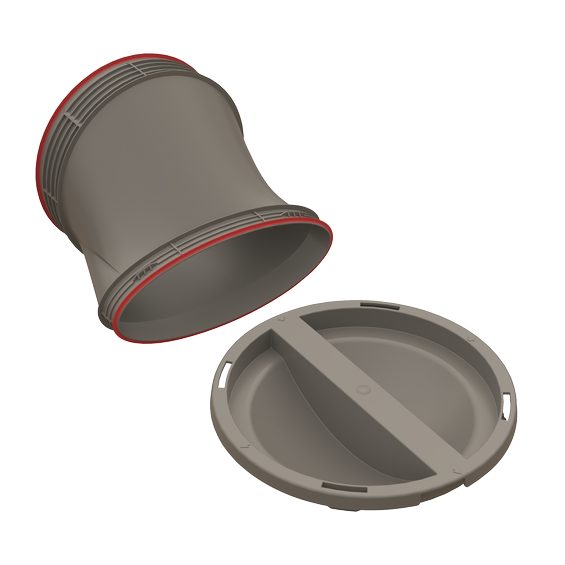

Air Excellent inline adaptor DN160 DB206

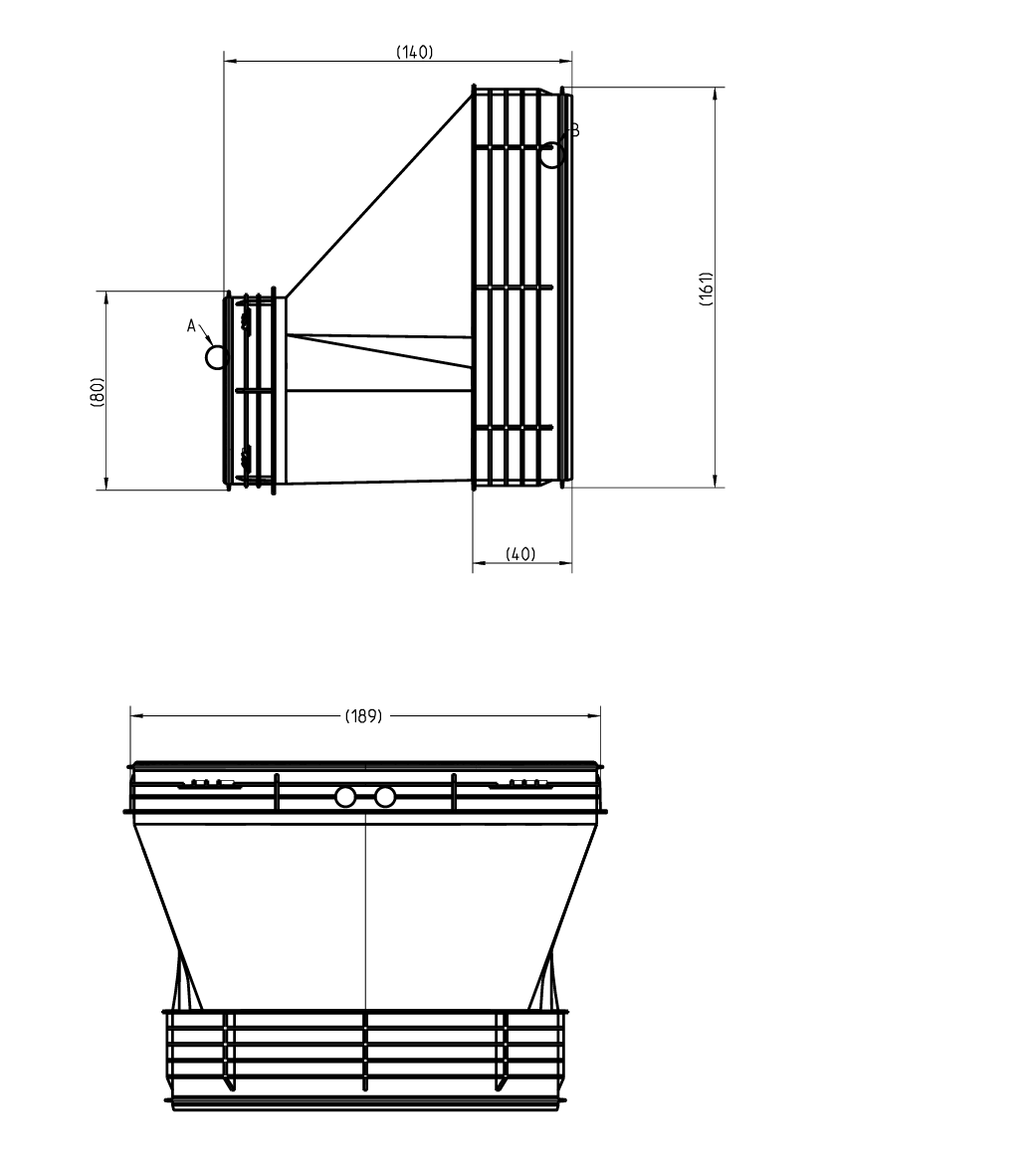

Dimensional drawing – Side connection DN160 Dbox
Air Excellent inline adaptor DN160 DB206
Dimensional drawing – Side connection DN160 Dbox

The horizontal adaptor facilitates easy connection of the 160mm Aerfoam insulated ducts to an Air Excellent distribution box.

  • Minimizes system pressure loss with its efficient design
  • Ensures airtight and safe assembly with integrated TPE seals, reducing fan energy use and minimizing sound production
  • Suitable for new build and renovation
  • Easy maintenance and servicing
  • Easy to install, tool-free installation, lightweight material.
View all specifications
The product has been added to the order list

With a favorites list, we offer you the opportunity to remember products and collect them together. You can then e-mail this list to yourself as a reminder and as an aid when visiting professional resellers.

To order list Close

Specifications

General

Product Name
Air Excellent DB206 horizontal adaptor 160
GTIN
8713645247274
Type
Adaptors
Trade name
Air Excellent

Technical

Colour
Grey
Material
PP
Anti static
Airflow direction
Supply / extract
Colour indication
RAL 7012
Shape
Circular
Antimicrobial

Dimensions

Length gross
140 mm
Height
161 mm
Width
189 mm
Net weight
0.237 kg

Logistical

Intrastat
39259080
Gross weight
0.349 kg
Packaging / Trade width
201 mm
Base unit packaging
Box
Packaging / Trade length
266 mm
Packaging / Trade height
176 mm

Performance

CE string
-
Temperature resistance (max.)
60 °C
Temperature resistance (min.)
-20 °C

Downloads

Installation manual

Installation manual - Distribution box 200 series
