Air Excellent AE55SC Connector

Article number: 188156

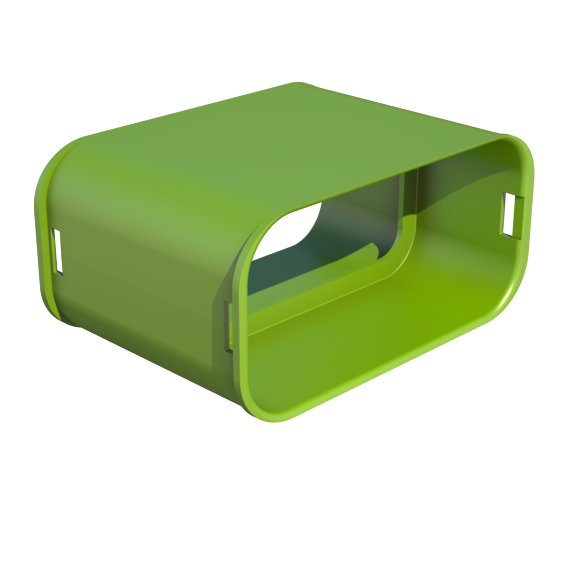

0188156-ae55_Connector FlexFlex
Dimensional drawing – AE55SC Connector
0188156-ae55_Connector FlexFlex
Dimensional drawing – AE55SC Connector

An AE55SC duct accessory used to connect AE55SC ducts. Use 2 AE55SC seal & click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item can be used to connect 2 AE55SC ducts.

Specifications

General

Product Name
Air Excellent AE55SC Connector
GTIN
8713645194769
Type
Connectors
Trade name
Air Excellent

Technical

Comm. Dimension
60 x 130 mm
Material
PP
Anti static
Airflow direction
Supply / extract
Colour
Green
Shape
Semi-circular
Antimicrobial

Dimensions

Length gross
102 mm
Height
71 mm
Width
148 mm
Net weight
0.09 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
148 mm
Packaging / Trade height
71 mm
Number per packaging
1
Gross weight
0.09 kg
Packaging / Trade width
102 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
