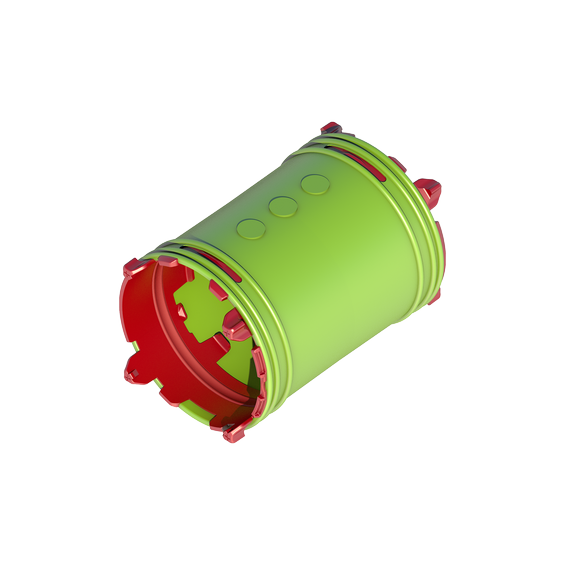

Air Excellent AE34C Connector Kit

Article number: 188579

Air Excellent Connector Kit

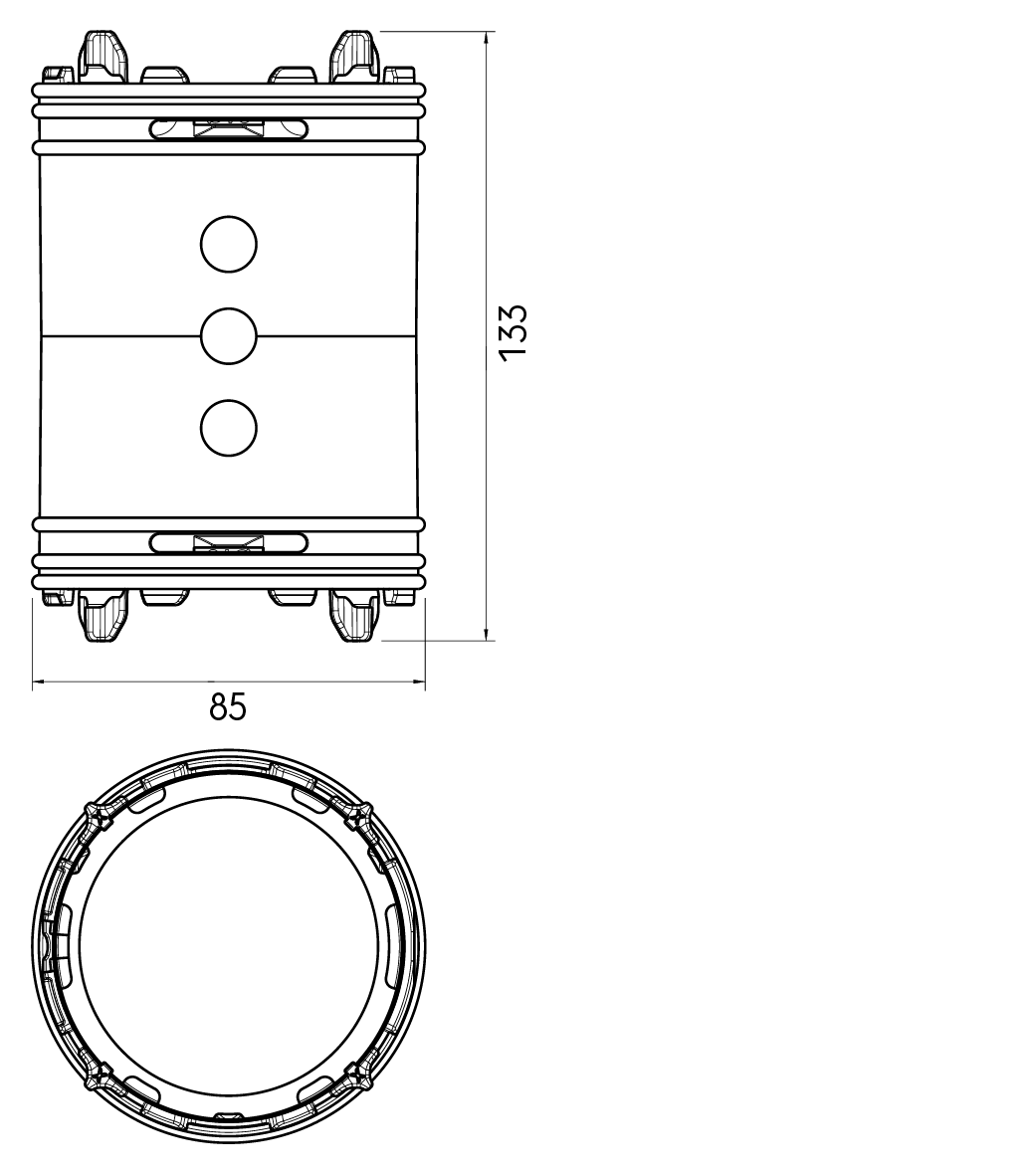

Dimensional drawing – AE34C Connector
Air Excellent Connector Kit
Dimensional drawing – AE34C Connector

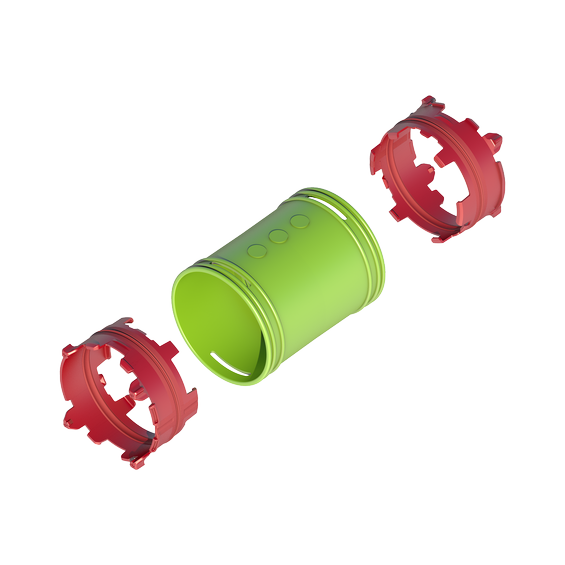

An AE34C duct accessory used to connect AE34C ducts. Includes 2 AE34C seal rings and 2 AE34C click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Detailed information

This item can be used to connect 2 AE34C ducts.

Specifications

General

Product Name
Air Excellent AE34C Connector Kit
GTIN
8713645214184
Type
Connectors
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Material
Plastic
Anti static
Airflow direction
Supply / extract
Colour
Green
Shape
Circular
Antimicrobial

Dimensions

Length gross
133 mm
Height
85.5 mm
Width
85.5 mm
Net weight
0.095 kg

Logistical

Intrastat
39259080
Gross weight
0.095 kg
Packaging / Trade width
85.5 mm
Base unit packaging
Unpacked
Packaging / Trade length
133 mm
Packaging / Trade height
85.5 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
