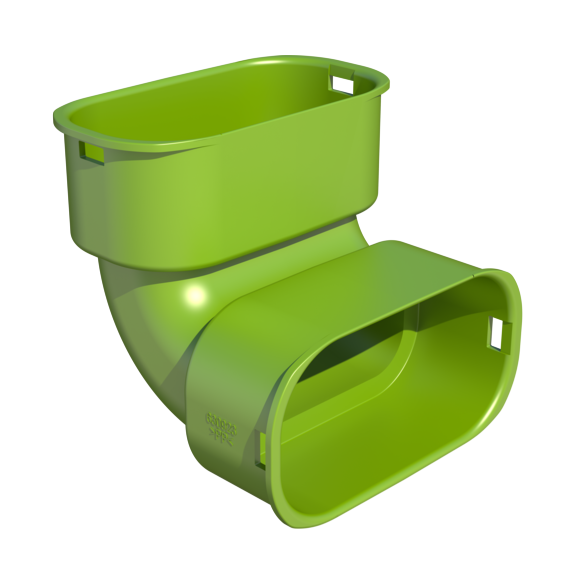

Air Excellent AE35SC Vertical Bend 90°

Article number: 188303

188303-AE35sc-BendVertical
Dimensional drawing – AE35SC Vertical Bend 90°
188303-AE35sc-BendVertical
Dimensional drawing – AE35SC Vertical Bend 90°

An AE35SC duct accessory. Use 2 AE35SC seal & click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item should be used when there is not enough space to bend the duct according to its minimum bending radius.

Specifications

General

Product Name
Air Excellent AE35SC Vertical Bend 90°
GTIN
8713645175010
Type
Bends
Trade name
Air Excellent

Technical

Comm. Dimension
50 x 100 mm
Material
PP
Anti static
Airflow direction
Supply / extract
Colour
Green
Shape
Semi-circular
Antimicrobial

Dimensions

Length gross
110 mm
Height
110 mm
Width
118 mm
Net weight
0.09 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
117 mm
Packaging / Trade height
110 mm
Number per packaging
1
Gross weight
0.09 kg
Packaging / Trade width
110 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
