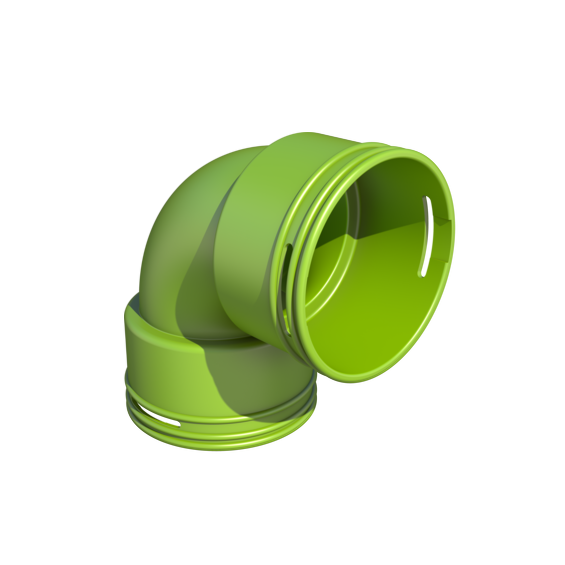

Air Excellent AE34C Bend 90°

Article number: 188173

188173-ae34c_bend_90_degrees
Dimensional drawing – AE34C Bend 90°
188173-ae34c_bend_90_degrees
Dimensional drawing – AE34C Bend 90°

An AE34C duct accessory. Use 2 AE34C seal rings and 2 AE34C click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item should be used when there is not enough space to bend the duct according to its minimum bending radius.

Specifications

General

Product Name
Air Excellent AE34C Bend 90°
GTIN
8713645215983
Type
Bends
Trade name
Air Excellent

Technical

Comm. Dimension
75 mm
Material
PP
Anti static
Airflow direction
Supply / extract
Colour
Green
Shape
Circular
Antimicrobial

Dimensions

Length gross
133 mm
Height
133 mm
Width
86 mm
Net weight
0.05 kg

Logistical

Intrastat
39259080
Base unit packaging
Foil
Packaging / Trade length
133 mm
Packaging / Trade height
133 mm
Number per packaging
1
Gross weight
0.07 kg
Packaging / Trade width
86 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
