Air Excellent AE23C Bend 90°

Article number: 188172

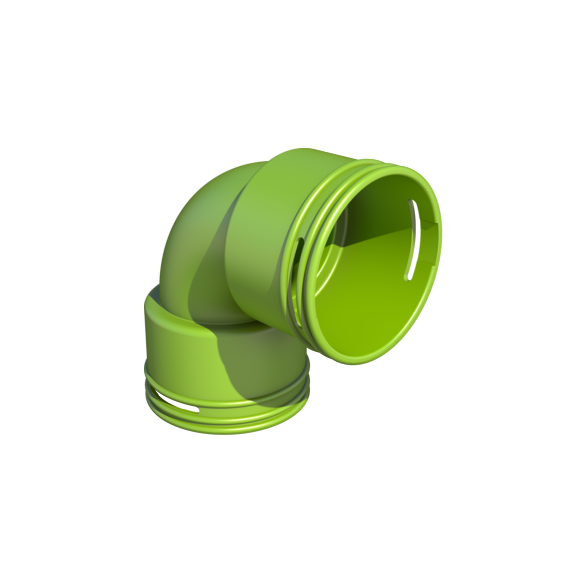

188172-ae23c_bend_90_degrees

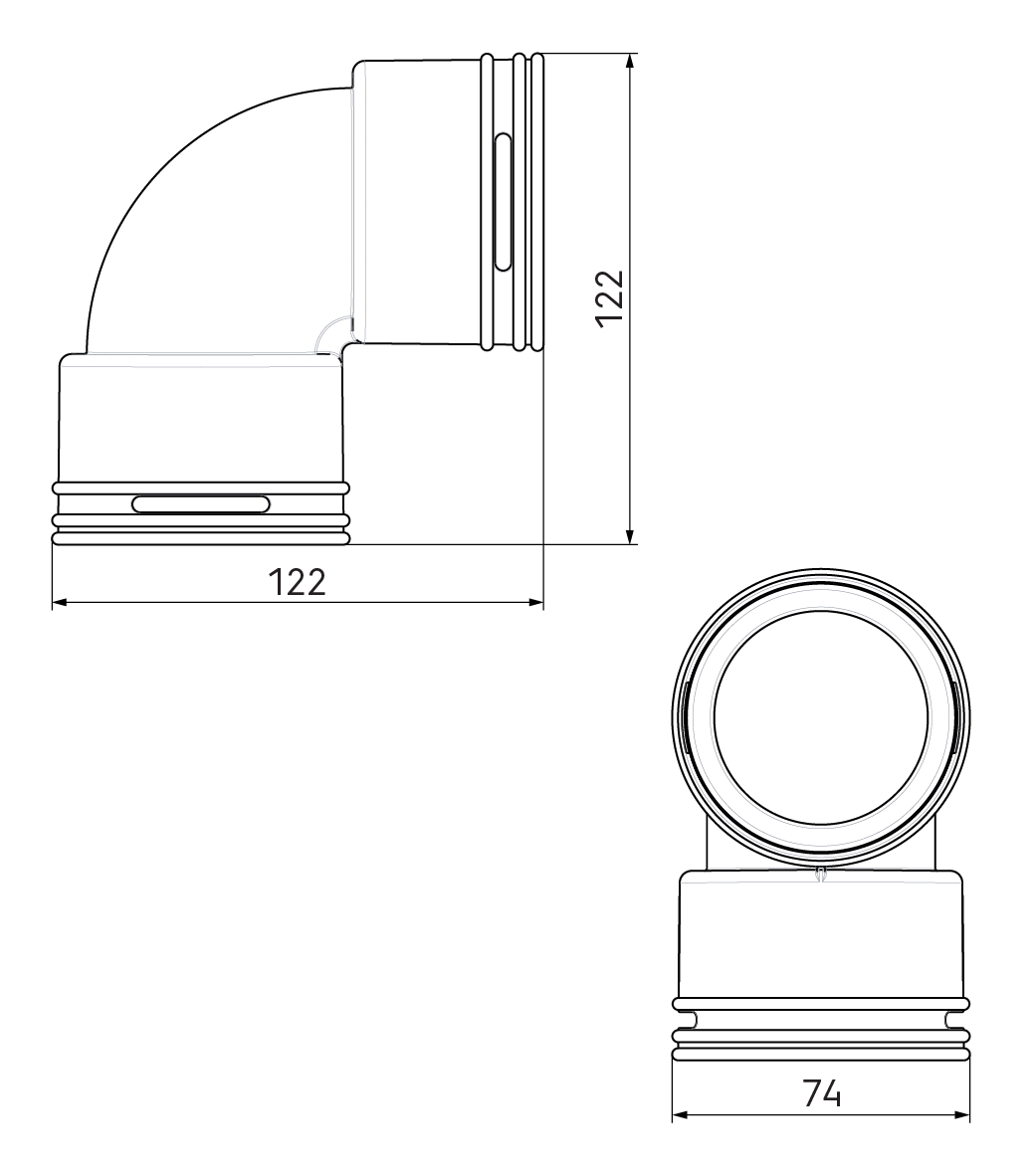

Dimensional drawing – AE23C Bend 90°
188172-ae23c_bend_90_degrees
Dimensional drawing – AE23C Bend 90°

An AE23C duct accessory. Use 2 AE23C seal rings and 2 AE23C click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant
View all specifications

Detailed information

This item should be used when there is not enough space to bend the duct according to its minimum bending radius.

Specifications

General

Product Name
Air Excellent AE23C Bend 90°
GTIN
8713645215976
Type
Bends
Trade name
Air Excellent

Technical

Comm. Dimension
63 mm
Material
PP
Anti static
Airflow direction
Supply / extract
Colour
Green
Shape
Circular
Antimicrobial

Dimensions

Length gross
122 mm
Height
74 mm
Width
122 mm
Net weight
0.04 kg

Logistical

Intrastat
39259080
Base unit packaging
Foil
Number per packaging
1
Gross weight
0.06 kg

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C
