Aerfoam 150 Bend 30°

Article number: 188271

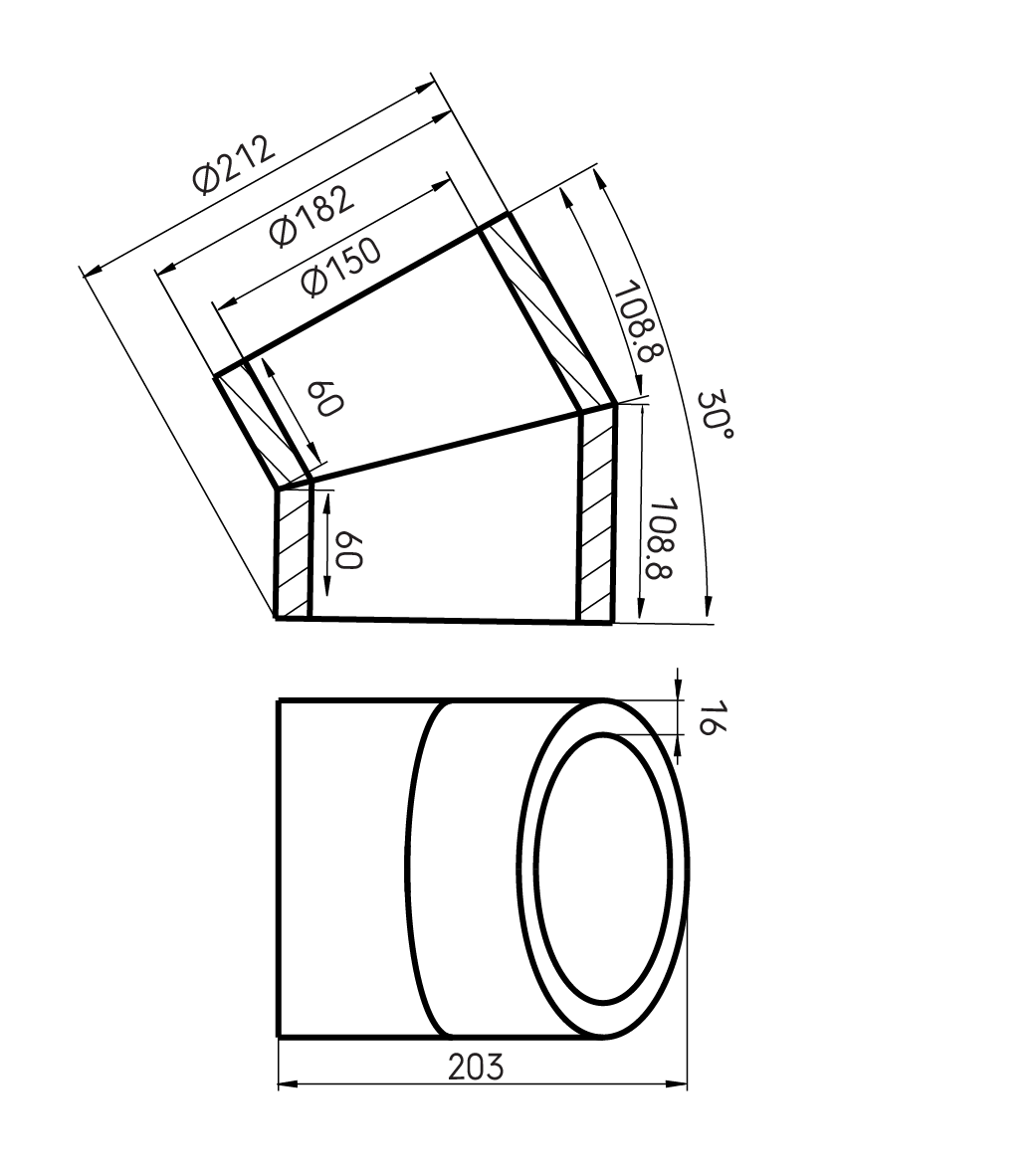

Aerfoam-Bend-30
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below
Aerfoam-Bend-30
Aerfoam insulated ductwork system
Aerfoam insulated ductwork system, view from below

Aerfoam is an easy-to-install, insulated and airtight ductwork system used in central mechanical ventilation and heat pump systems, which minimises the risk of condensation in or on the duct (airtightness class D = ATC 2 up to +/- 200 Pa).

  • Insulated
  • Extremely easy and safe to cut to length
  • Airtight mechanical connections, which are extremely easy to install
  • Airtightness class D/ATC 2 up +/- 200 Pa, which minimises fan energy use and sound production
  • EPD certified and REACH compliant
View all specifications

Specifications

General

Product Name
Aerfoam 150 Bend 30°
GTIN
8713645123035
Type
Bends
Trade name
Aerfoam

Technical

Comm. Dimension
150 mm
Material
EPE
Insulation thickness
16 mm
Colour
Grey
Shape
Circular
Airflow direction
Supply / extract

Dimensions

Length gross
212 mm
Height
203 mm
Width
182 mm
Net weight
0.04 kg

Logistical

Intrastat
39259080
Base unit packaging
Unpacked
Packaging / Trade length
212 mm
Packaging / Trade height
203 mm
Number per packaging
6
Gross weight
0.04 kg
Packaging / Trade width
182 mm

Performance

CE string
-
Installation temperature (max.)
60 °C
Installation temperature (min.)
-30 °C
Temperature resistance (min.)
-30 °C
Temperature resistance (max.)
60 °C
