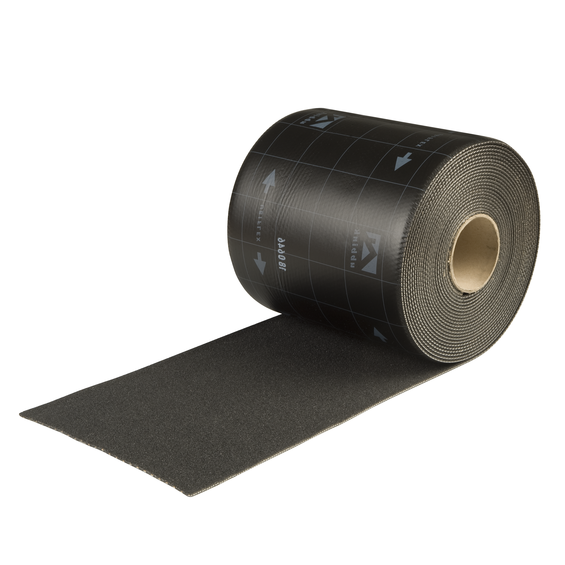

Ubiflex Standard 400mm x 6m Black
Article number: 534033
Detailed information
Ubiflex is manufactured by coating both sides of an aluminium mesh reinforcement with a mixture of modified bitumen and additives. The underside of the product is finished with a kraft paper and film backing. Colour granules are added to the surface, the material cooled and rolled into the required lengths. Ubiflex B3 is an aluminium mesh reinforced with a granular-coated bitumen with a kraft paper and film backing, which can be fixed using Ubbink’s High Tack sealant.
Specifications
General
Product Name
Ubiflex Standard 400mm x 6m Black
GTIN
8713645121710
Type
Lead-Free Flashing
Trade name
Ubiflex
Technical
Colour
Black
Material
Bitumen
Dimensions
Length gross
6 m / 6000 mm
Net weight
8.88 kg
Width
400 mm
Logistical
Intrastat
68071000
Base unit packaging
Box
Packaging / Trade length
205 mm
Packaging / Trade height
410 mm
Number per packaging
1
Gross weight
9.16 kg
Packaging / Trade width
205 mm
Performance
CE string
-
Installation temperature (max.)
40 °C
Installation temperature (min.)
5 °C
Temperature resistance (min.)
-30 °C
Temperature resistance (max.)
120 °C
Downloads
Control of Substances Hazardous to Health (COSSH)
COSHH - Ubiflex Standard flashing
Certificate
Certificate - BBA Ubiflex Standard flashing
Installation manual
Installation manual - Ubiflex Standard & Ubiflex Standard Ribbed
UBIFLEX -For Solar in-roof installations
Technical data sheet
Technical data sheet - Ubiflex Standard
Brochure/folder
Brochure - Non-lead flashings product range overview
Leaflet/flyer
Leaflet - Ubiflex Standard lead-free flashing
Warranty document
Warranty document - Ubiflex Standard
