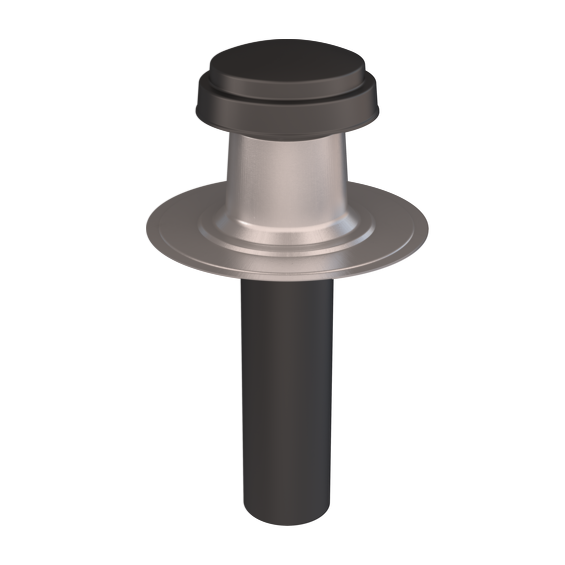

FlatRoofVent Roof Terminal 110 Black

Article number: 169931

0169941-FlatRoofVent-110R
FlatRoofVent-Dak
ventilatie op dak met bitumen
0169941-FlatRoofVent-110R
FlatRoofVent-Dak
ventilatie op dak met bitumen

The Ubbink OFT range vents are capped stacks for use in the below roof types. There are five flange types for different roof covering that suit the OFT1 range ranging from 110mm diameter to 166mm. With the following roof finishes: • Asphalt • Built up felt • EPDM • Bitumen • GRP roofs The OFT/1 range is suitable for use with soil and vent systems and for both mechanical and natural (passive) ventilation installations. It offers a large free vent area with a low Pascal resistance figure.

  • Large free vent area/Low Pa resistance
  • Made of high-quality PP
  • Applicable for all weather conditions
  • High ventilation capacity
  • No rain ingress
  • Elegant design
  • For new build and renovation purposes
View all specifications
The product has been added to the order list

With a favorites list, we offer you the opportunity to remember products and collect them together. You can then e-mail this list to yourself as a reminder and as an aid when visiting professional resellers.

To order list Close

Specifications

General

Product Name
FlatRoofVent Roof Terminal 110 Black
GTIN
8713645219424
Type
Roof Terminals
Trade name
FlatRoofVent

Technical

Comm. Dimension
110 mm
Material
Plastic
Colour
Black

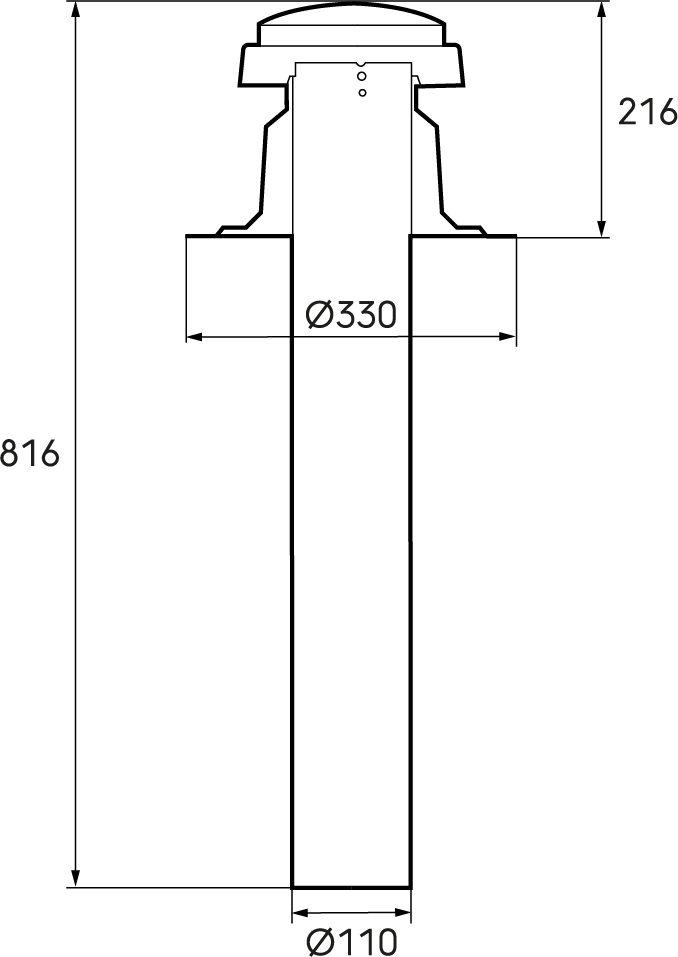

Dimensions

Length gross
330 mm
Height
817 mm
Width
330 mm
Net weight
1.77 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
834 mm
Packaging / Trade height
330 mm
Number per packaging
1
Gross weight
1.77 kg
Packaging / Trade width
330 mm

Performance

CE string
-
