Ventilation
Healthy and comfortable air in every room

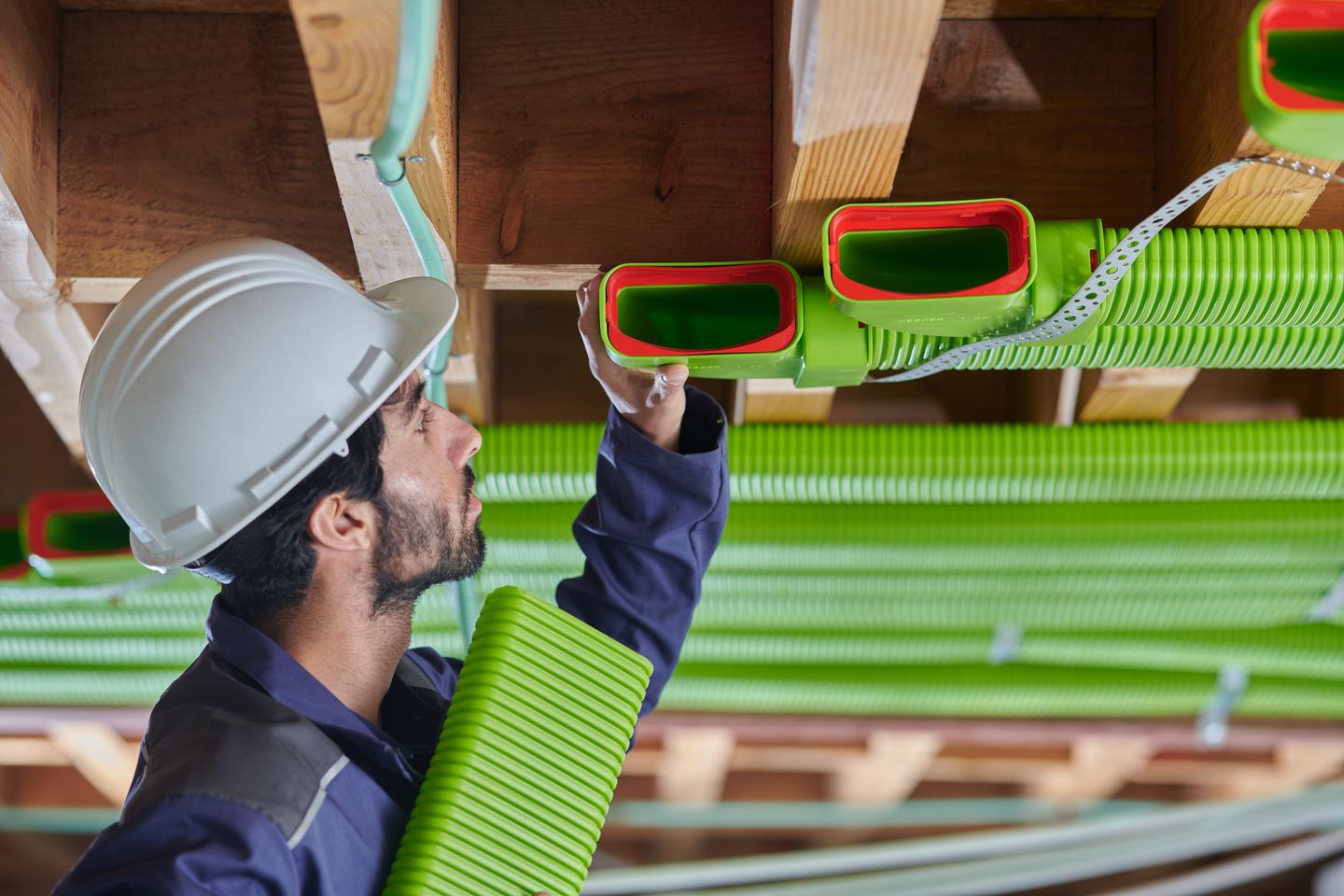

Ubbink Air Excellent is a comprehensive air distribution system designed for ventilation. This highly flexible and modular system is suitable for all ventilation setups, catering to both small and large new construction and renovation projects. The Air Excellent system includes air distribution ducts (flexibles) and air distribution boxes.
- Minimal pressure losses
- Antimicrobial and antistatic properties
- Safe and fast installation
- Air tightness class D
Semi-circular or round air ducts
The Air Excellent air distribution system is available in 2 types: Semi-Circular and Circular. Depending on the required ventilation capacity, different sizes are available.
| Air Excellent Semi-Circular | Air Excellent Circular | ||||
|---|---|---|---|---|---|
| Type | Ventilation capacity | Dimensions [mm] | Type | Ventilation capacity | Diameter [mm] |
| AE35SC | 33m³/h | 50x100 | AE34C | 34m³/h | Ø63/75 |
| AE55SC | 58m³/h | 60x130 | AE48C | 48m³/h | Ø75/90 |
Working with an Air Distribution Box
Using an air distribution box offers numerous advantages. It simplifies the design process and makes regulating ventilation in individual rooms easier. Additionally, it prevents speech transmission between rooms, which is important for residents.
Design Freedom

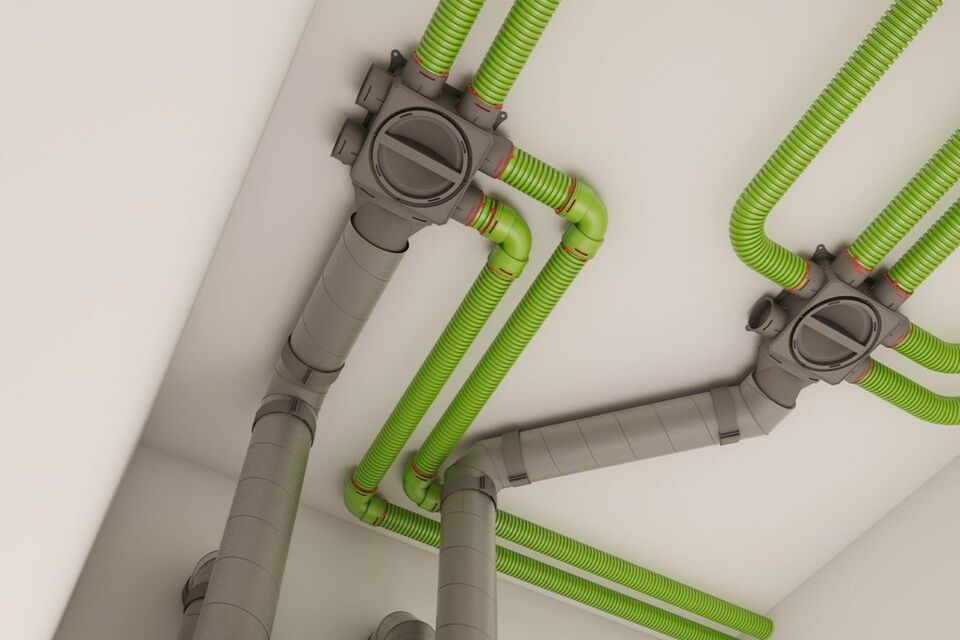

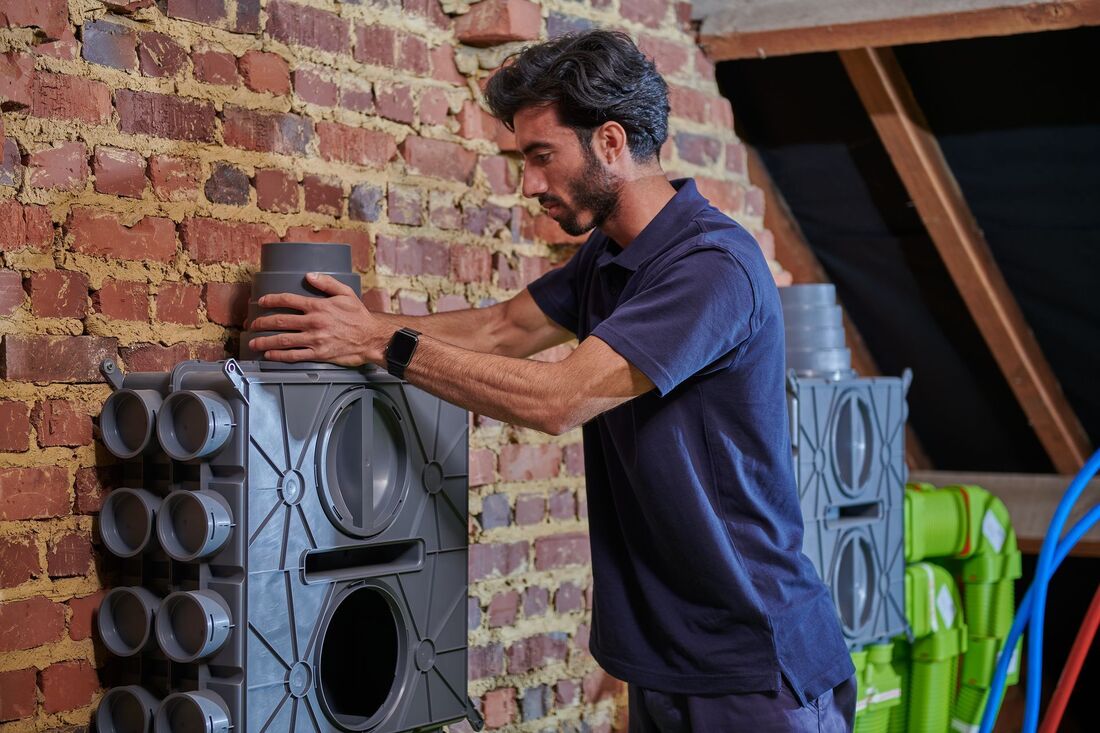

The air distribution system channels air from the ventilation unit through the main duct to the air distribution box. This box then distributes the air to various rooms via the connected Air Excellent air ducts. The plastic air distribution box provides significant design flexibility. The boxes are modular and come with adapters for different duct sizes. Depending on the number of ducts to be connected, you can choose between the 200 Series or the 800 Series. The individual branches reduce pressure loss compared to traditional systems, which benefits energy consumption.
Easy Adjustment

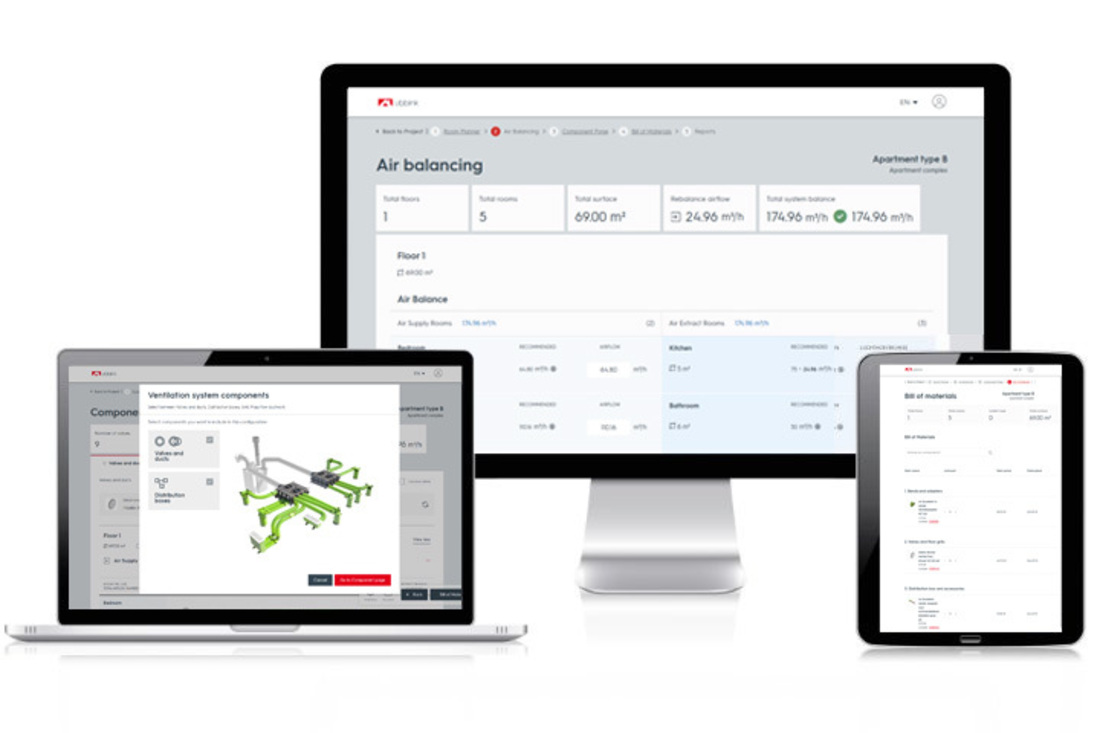

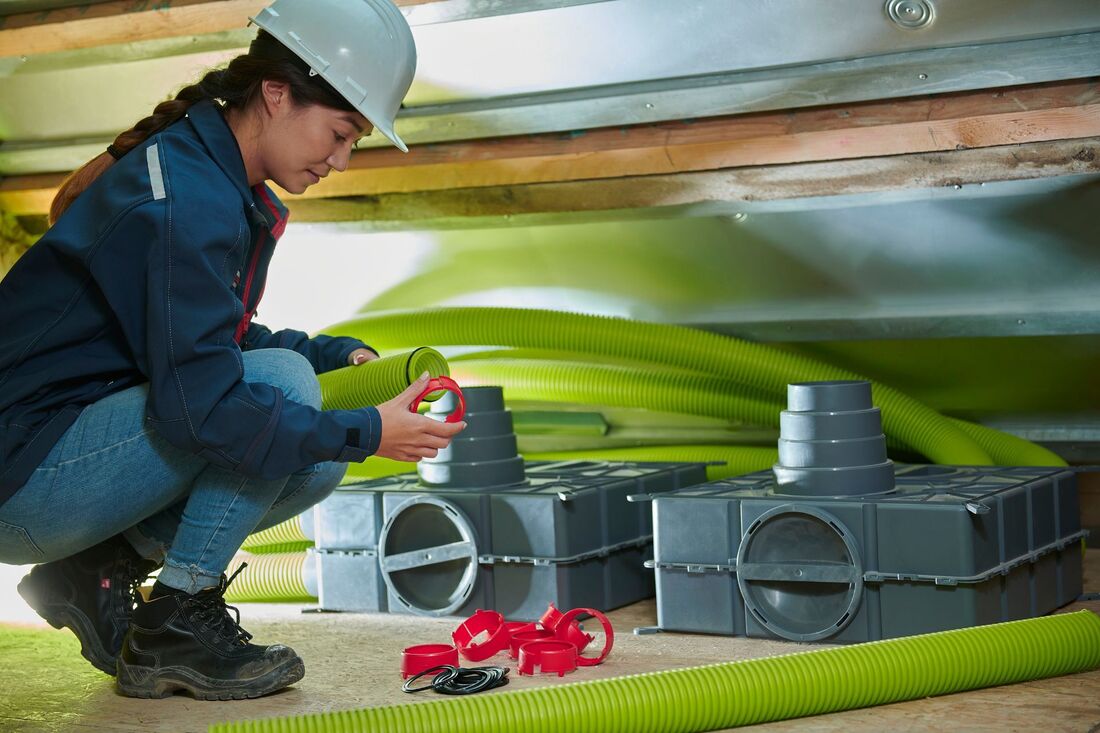

Adjustment is straightforward because the ducts run from the cabinet to individual rooms. This setup prevents speech transmission between rooms and minimizes pressure losses. Resistance calculations can be made in advance using our special online calculation program, the Air Excellent configurator, because you ventilate per room. Restriction rings inside the air distribution box regulate the air flows in the connected ducts.
The air distribution boxes can connect to all types of air ducts using adapters.
- Very low pressure loss
- Multiple inspection hatches with EPDM seals
- Easy maintenance
- Low noise thanks to damping set (optional)
One system for the entire air distribution
Air Excellent is a complete program consisting of:

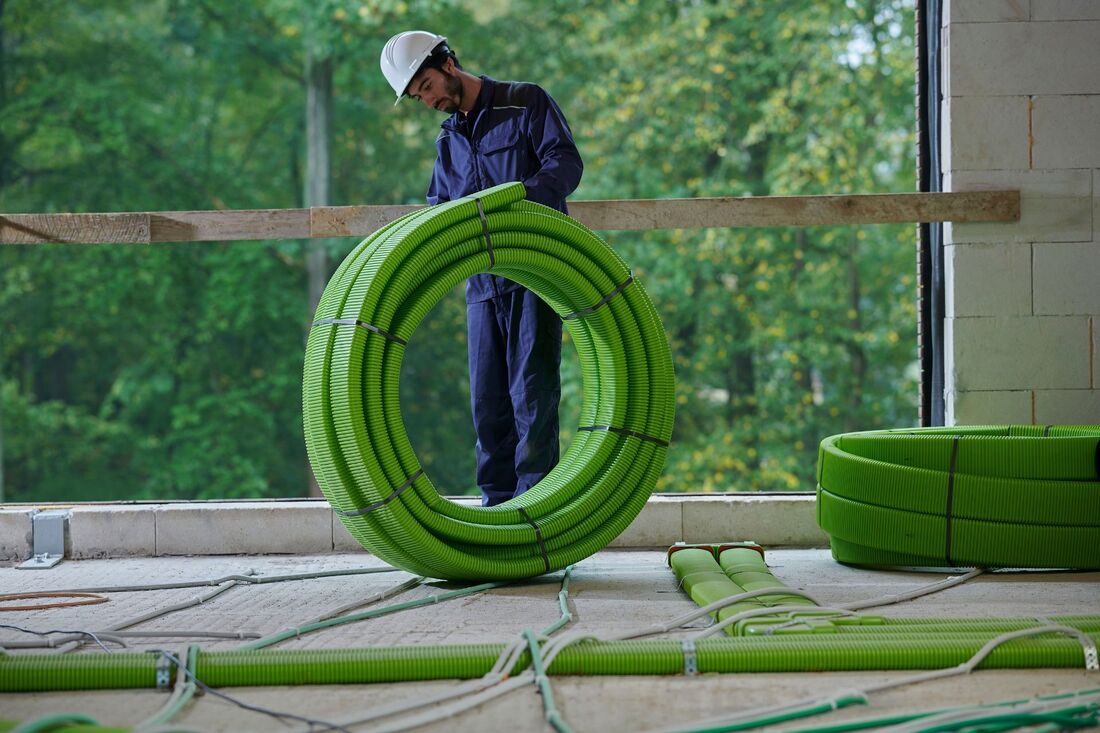

- Flexible channels
- Air distribution boxes

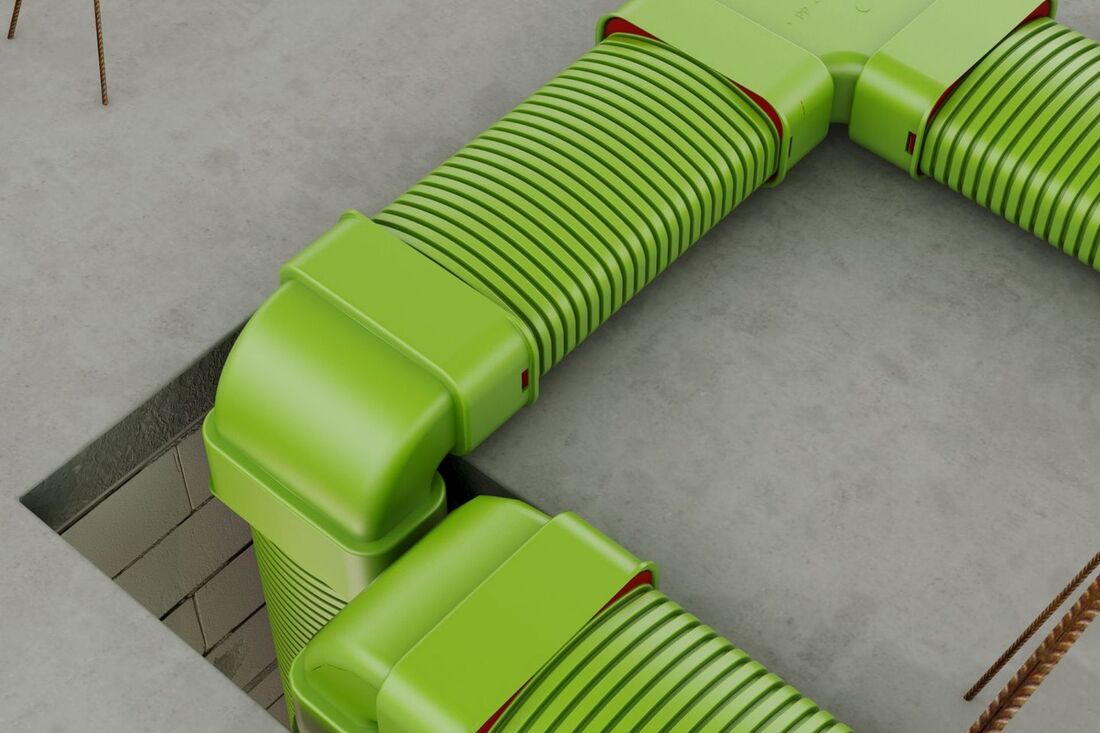

- Bends and adapters
- Valves and floor grilles
- Brackets
- Configurator for easy adjustment
Air Excellent FAQ's
Learn more with our FAQ's
Yes, however the amount you can bend it is restricted to maintain a smooth radius or curve
It depends on where it is located, the regulations state that all duct if installed in unheated areas IE a loft, must be insulated, the insulation value must be 0.04w/mk or lower or by using an insulated wrap the semi rigid duct can have an insulation layer around it of 25mm .
If you install semi rigid duct elsewhere outside of a cold area it does not require insulating.
If you install semi rigid duct elsewhere outside of a cold area it does not require insulating.
Good quality ducting like our Air Excellence does not need any other sealants, any ducting with ATC 2 rating is airtight already.
Back in the early 2000`s it was common to use tape to join ducts along with a non-hardening sealant , this is no longer the favoured option, ducting manufacturers like Ubbink manufacture ducting connections that will provide an airtight seal without using tape or sealant.
Back in the early 2000`s it was common to use tape to join ducts along with a non-hardening sealant , this is no longer the favoured option, ducting manufacturers like Ubbink manufacture ducting connections that will provide an airtight seal without using tape or sealant.
The size of the ducting is proportionate to the amount of air required for example, if the house/property demands a high volume of air being supplied and extracted then this may require larger ducting or even double duct runs., all of this is calculated at the design stage .
In a nutshell , the design determines the air volumes, it the air volumes are high you need larger ducting , if the air volumes are low you can use smaller ducting.
In a nutshell , the design determines the air volumes, it the air volumes are high you need larger ducting , if the air volumes are low you can use smaller ducting.
Semi rigid ducting should be supported every 500 mm , the ducting should not sag as condensation can form in any dips or traoughs and cause problems.
Yes, however the ability to bend it too far is restricted, air does not like to go around corners so limiting the amount of flexibility is key .
Documentation
Brochures
Datasheets
| Flexible air ducts | Air distribution boxes |
|---|---|
| AE35SC | DBOX 206 connections |
| AE34C | DBOX 208 connections |
| DBOX 816 16 connections | |
| DBOX 808 8 connections | |
| DBOX 824 24 connections |
| Valve adaptor 2x 90° | Valve adaptor 2x 180° |
|---|---|
| AE35SC | AE55SC |
| AE55SC | AE34C |
| AE34C | |
Complete your system
Discover our total solutions!
We offer comprehensive solutions for residential ventilation, a unique specialty we take great pride in!
A complete Ubbink ventilation system comprises five components, from the ventilation unit to the finishing valve:
- Ubiflux heat recovery units: Extremely compact ventilation units for wall or ceiling installation.
- Air Excellent air distribution system: Flexible and modular.
- Aerfoam insulated pipe system.

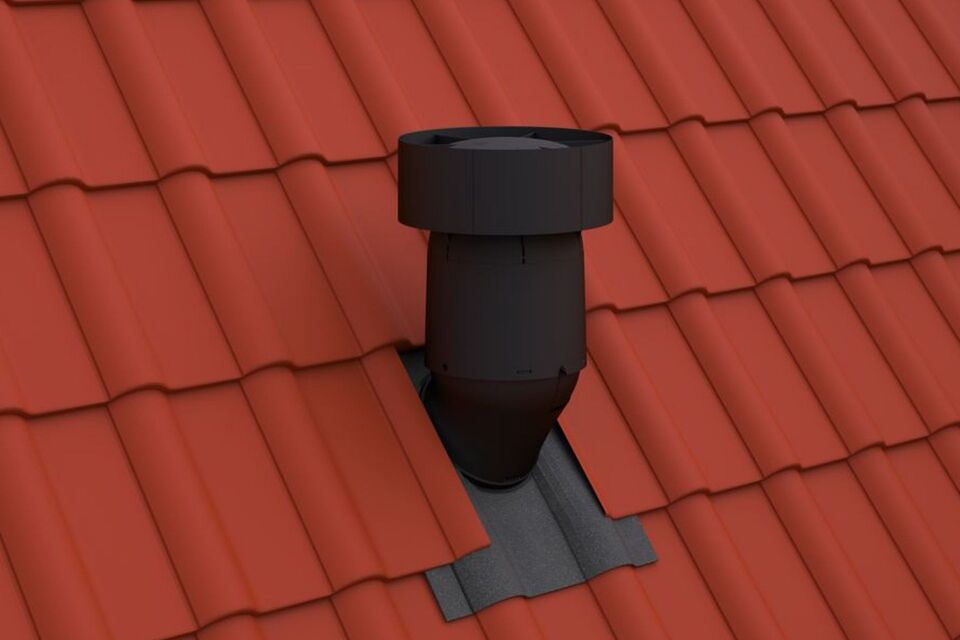

- Roof terminals: Suitable for flat and sloping roofs, both insulated and non-insulated.
- Haelix supply and discharge valves: Available in round and square designs.
From our unique position, we provide quick, accurate, and reliable advice on our ventilation systems, all from the comfort of your home.
Have an upcoming project and need a complete solution from design to delivery? Explore our MVHR Solutions!
